CALL US AT 1-973-377-9566 FOR ALL YOUR NEEDS.
American Microsemiconductor
Asdfasd

Price: $33.69

Quantity: 15

  • Quantity: 15
    Military/High-Rel:N
    Input Bias Current Max. (A):13u
    t(resp) (S):3.5n
    V(io) Max. (V):3.0m
    I(io) Max. (A):1.2u
    Com Mode Inp Range (VICR):2.5ñ
    Strobe Inp (Y/N):No
    Nom. Supp (V):5.0ñ
    Minimum Operating Temp (øC):-25
    Maximum Operating Temp (øC):85
    Package Style:DIP
    Mounting Style:T
    # Pins:16
    
  • Quantity: 3
    Military/High-Rel:N
    Input Bias Current Max. (A):10u
    t(resp) (S):3.5n
    V(io) Max. (V):2.0m
    I(io) Max. (A):1.0u
    Com Mode Inp Range (VICR):2.5ñ
    Strobe Inp (Y/N):No
    P(D) Max. (W):500m
    Nom. Supp (V):5.0ñ
    Minimum Operating Temp (øC):-25
    Maximum Operating Temp (øC):85
    Package Style:SO
    Mounting Style:S
    # Pins:16
    at V(GR) ó 0å

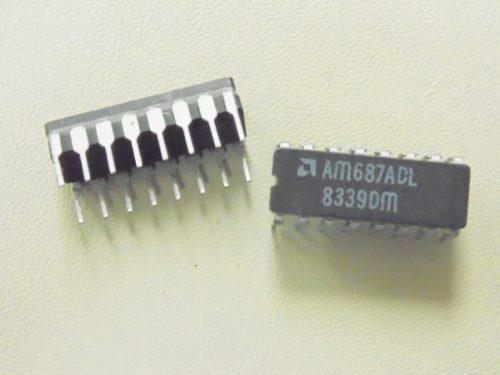

  • AM687ADL

    $87.34
    Quantity: 57
    Military/High-Rel:N
    Input Bias Current Max. (A):10u
    V(io) Max. (V):3.0m
    I(io) Max. (A):1.0u
    Com Mode Inp Range (VICR):2.7
    Strobe Inp (Y/N):No
    P(D) Max. (W):485m
    Nom. Supp (V):5.0ñ
    Minimum Operating Temp (øC):-30
    Maximum Operating Temp (øC):85
    Package Style:DIP
    Mounting Style:T
    # Pins:16
    Junction Temperatureò
  • AM687DL

    $24.98
    Quantity: 381
    Military/High-Rel:N
    Input Bias Current Max. (A):10u
    t(resp) (S):9.0n
    V(io) Max. (V):3.0m
    I(io) Max. (A):1.0u
    Com Mode Inp Range (VICR):2.7
    Strobe Inp (Y/N):No
    P(D) Max. (W):600m
    Nom. Supp (V):7.0ñ
    Minimum Operating Temp (øC):-30
    Maximum Operating Temp (øC):85
    Package Style:DIP
    Mounting Style:T
    # Pins:16
    Current Rise Timeç
  • Out of stock

    LM119D

    $16.23
    Quantity: 0
    Military/High-Rel:N
    Input Bias Current Max. (A):1.0u
    t(resp) (S):80n
    V(io) Max. (V):7.0m
    I(io) Max. (A):100n
    Com Mode Inp Range (VICR):13ñ
    Volt Gain Min:78
    Strobe Inp (Y/N):No
    P(D) Max. (W):240m
    Nom. Supp (V):15ñ
    Minimum Operating Temp (øC):-55
    Maximum Operating Temp (øC):125
    Package Style:DIP
    Mounting Style:T
    # Pins:10
    Mask Programmable ROM
  • Out of stock

    LM119H

    $24.84
    Quantity: 0
    Military/High-Rel:N
    Input Bias Current Max. (A):500n
    t(resp) (S):80n
    V(io) Max. (V):4.0m
    I(io) Max. (A):75n
    Com Mode Inp Range (VICR):26Â
    Volt Gain Min:80
    Strobe Inp (Y/N):No
    Nom. Supp (V):15
    Minimum Operating Temp (øC):-55
    Maximum Operating Temp (øC):125
    Package Style:TO-78
    Mounting Style:T
    # Pins:10
    V(CE)Ü
  • Out of stock

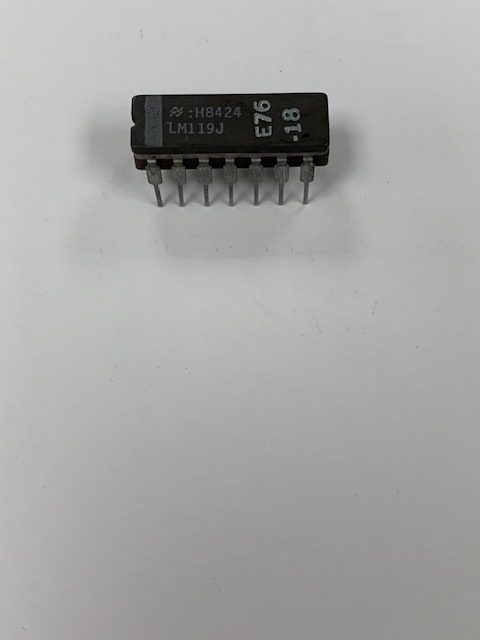

    LM119J

    $21.95
    Quantity: 0
    Military/High-Rel:N
    Input Bias Current Max. (A):500n
    t(resp) (S):80n
    V(io) Max. (V):4.0m
    I(io) Max. (A):75n
    Com Mode Inp Range (VICR):26Â
    Volt Gain Min:80
    Strobe Inp (Y/N):No
    Nom. Supp (V):15
    Minimum Operating Temp (øC):-55
    Maximum Operating Temp (øC):125
    Package Style:DIP
    Mounting Style:T
    # Pins:14
    Optical Rise TimeÚ
  • LM193H

    $21.23
    Quantity: 86
    Military/High-Rel:N
    Input Bias Current Max. (A):300n
    t(resp) (S):1.3u
    V(io) Max. (V):9.0m
    I(io) Max. (A):100n
    Com Mode Inp Range (VICR):3.5
    Volt Gain Min:94
    Strobe Inp (Y/N):No
    P(D) Max. (W):5.0m
    Nom. Supp (V):5.0
    Minimum Operating Temp (øC):-55
    Maximum Operating Temp (øC):125
    Package Style:TO-78
    Mounting Style:T
    # Pins:8
    +/- (Plus or Minus)ñ
  • Out of stock

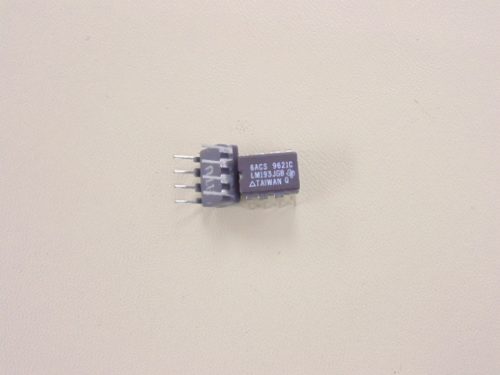

    lm193jgb

    $19.26
    Quantity: 0
    Military/High-Rel:N
    Input Bias Current Max. (A):30n
    t(resp) (S):1.3u
    V(io) Max. (V):9.0m
    I(io) Max. (A):100n
    Com Mode Inp Range (VICR):3
    Strobe Inp (Y/N):No
    P(D) Max. (W):900m
    Nom. Supp (V):5.0
    Minimum Operating Temp (øC):-55
    Maximum Operating Temp (øC):125
    Package Style:DIP
    Mounting Style:T
    # Pins:8
    ICEO°
  • LM2903N

    $2.50
    Quantity: 2
    Military/High-Rel:N
    Input Bias Current Max. (A):500n
    t(resp) (S):1.3u
    V(io) Max. (V):15m
    I(io) Max. (A):200n
    Com Mode Inp Range (VICR):3.5
    Volt Gain Min:88
    Strobe Inp (Y/N):No
    P(D) Max. (W):1.16
    Nom. Supp (V):5.0
    Minimum Operating Temp (øC):-40
    Maximum Operating Temp (øC):85
    Package Style:DIP
    Mounting Style:T
    # Pins:8
    Current Rise Timeç
  • LM2903P

    $2.86
    Quantity: 84
    Military/High-Rel:N
    Input Bias Current Max. (A):250n
    t(resp) (S):300n
    V(io) Max. (V):15m
    I(io) Max. (A):200n
    Com Mode Inp Range (VICR):3.5
    Volt Gain Min:88
    Strobe Inp (Y/N):No
    P(D) Max. (W):5.0m
    Nom. Supp (V):5.0
    Minimum Operating Temp (øC):-40
    Maximum Operating Temp (øC):85
    Package Style:DIP
    Mounting Style:T
    # Pins:8
    Quiescent
  • LM319D

    $0.53
    Quantity: 1916
    Military/High-Rel:N
    Input Bias Current Max. (A):1.2u
    t(resp) (S):80n
    V(io) Max. (V):10m
    I(io) Max. (A):300n
    Com Mode Inp Range (VICR):13ñ
    Volt Gain Min:78
    Strobe Inp (Y/N):No
    P(D) Max. (W):262m
    Nom. Supp (V):15ñ
    Maximum Operating Temp (øC):70
    Package Style:DIP
    Mounting Style:T
    # Pins:14
    TypicalÁ
  • LM319J

    $12.49
    Quantity: 3
    Military/High-Rel:N
    Input Bias Current Max. (A):1.2u
    t(resp) (S):80n
    V(io) Max. (V):10m
    I(io) Max. (A):300n
    Com Mode Inp Range (VICR):3.0
    Strobe Inp (Y/N):No
    P(D) Max. (W):0.5
    Nom. Supp (V):15ñ
    Maximum Operating Temp (øC):70
    Package Style:DIP
    Mounting Style:T
    # Pins:14
    ICER»
  • LM319N

    $2.63
    Quantity: 3296
    Military/High-Rel:N
    Input Bias Current Max. (A):1.2u
    t(resp) (S):80n
    V(io) Max. (V):10m
    I(io) Max. (A):300n
    Com Mode Inp Range (VICR):3.0
    Strobe Inp (Y/N):No
    P(D) Max. (W):0.5
    Nom. Supp (V):15ñ
    Maximum Operating Temp (øC):70
    Package Style:DIP
    Mounting Style:T
    # Pins:14
    High Frequency (Yfs) A/V¼

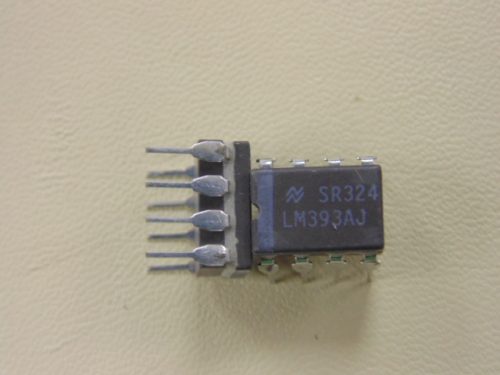

  • LM393AJ

    $7.75
    Quantity: 65
    Military/High-Rel:N
    Input Bias Current Max. (A):250n
    t(resp) (S):1.3u
    V(io) Max. (V):2.0m
    I(io) Max. (A):50n
    Com Mode Inp Range (VICR):34
    Volt Gain Min:106Â
    Strobe Inp (Y/N):No
    P(D) Max. (W):600m
    Nom. Supp (V):36
    Maximum Operating Temp (øC):70
    Package Style:SO
    Mounting Style:S
    # Pins:8
    ID in mA¢

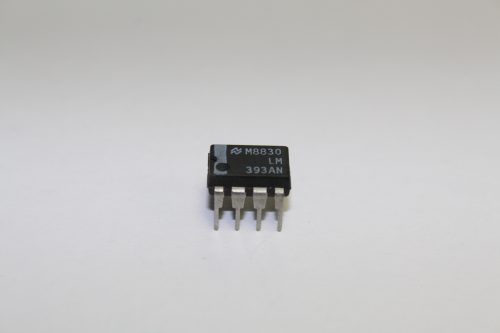

  • LM393AN

    $14.80
    Quantity: 158
    Military/High-Rel:N
    Input Bias Current Max. (A):400n
    t(resp) (S):1.3u
    V(io) Max. (V):4.0m
    I(io) Max. (A):150n
    Com Mode Inp Range (VICR):3.5
    Volt Gain Min:94
    Strobe Inp (Y/N):No
    P(D) Max. (W):1.16
    Nom. Supp (V):5.0
    Maximum Operating Temp (øC):70
    Package Style:DIP
    Mounting Style:T
    # Pins:8
    ˜
