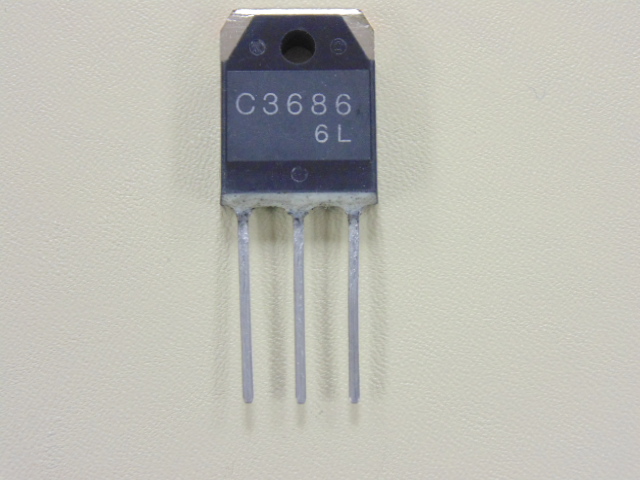

Part Number: 2SC3686

2SC3686
Internal ID
52863
Quantity in Stock:
22
Manufacturer:
Mixed
Description:
NPN triple diffused planar silicon transistor very high-definition CTR display horizontal deflection output
Category:

Price Per Quantity

22 in stock

1 - 24 $18.75
25 - 99 $18.56
100 - 499 $18.38
500 - 999 $18.28
999 + $18.19














Maximum Operating Temp (øC):150õ
V(BR)CBO (V):1.5k
Military/High-Rel:N
V(BR)CEO (V):800
t(f) Max. (s) Fall time.:200n
Absolute Max. Power Diss. (W):120
@I(C) (A) (Test Condition):1.0
I(CBO) Max. (A):1.0m×
h(FE) Min. Current gain.:8.0
@V(CE) (V) (Test Condition):5.0
Package Style:TO-247var
I(C) Max. (A):7.0
I(C) Max. (A):Û
Mounting Style:T
