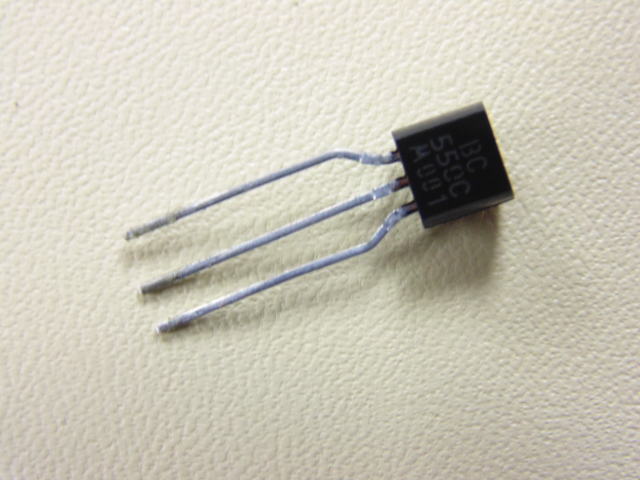

Part Number: BC550C

BC550C
Internal ID
69435
Quantity in Stock:
Manufacturer:
AMS
Description:
50 V - 100 MA - NPN Silicon Transistor TRANSISTOR
Category:

Price Per Quantity

    Military/High-Rel:N
    V(BR)CEO (V):45
    V(BR)CBO (V):50
    I(C) Max. (A):100m
    Absolute Max. Power Diss. (W):625m’
    Maximum Operating Temp (øC):150õ
    I(CBO) Max. (A):15n
    @V(CBO) (V) (Test Condition):30
    h(FE) Min. Current gain.:420
    h(FE) Max. Current gain.:800
    @I(C) (A) (Test Condition):2.0m
    @V(CE) (V) (Test Condition):5.0
    f(T) Min. (Hz) Transition Freq:250MÂ
    @I(C) (A) (Test Condition):10m
    @V(CE) (V) (Test Condition):5.0
    V(CE)sat Max. (V):.60
    @I(C) (A) (Test Condition):100m
    @I(B) (A) (Test Condition):5.0m
    h(fe) Min. SS Current gain.:450
    @I(C) (A) (Test Condition):2.0m
    @V(CE) (V) (Test Condition):5.0
    @Freq. (Hz) (Test Condition):1.0k
    t(on) Max. (s) On time.:70n
    t(off) Max. (s) Off time:250n
    Package Style:TO-92
    Mounting Style:T
    at V(GR) ó 0å
