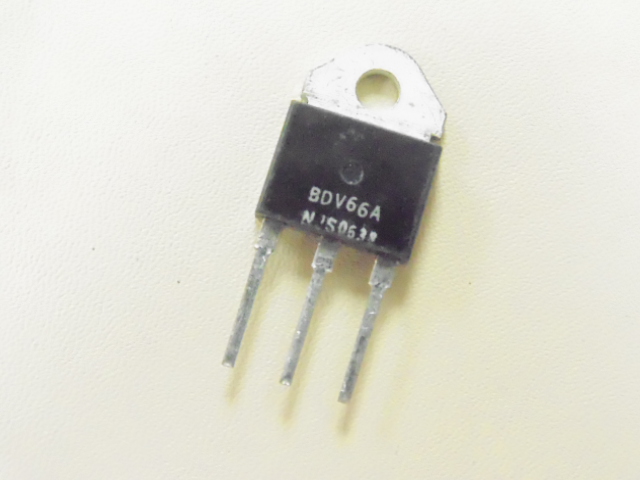

Part Number: BDV66A

BDV66A
Internal ID
69565
Quantity in Stock:
10
Manufacturer:
NJS
Description:
POWER TRANSISTORS(16A - 60-100V - 125W) TRANSISTOR
Category:

Price Per Quantity

10 in stock

1 - 24 $32.36
25 - 99 $32.04
100 - 499 $31.72
500 - 999 $31.55
999 + $31.39
Military/High-Rel:N
V(BR)CEO (V):80
V(BR)CBO (V):100
I(C) Max. (A):16
Absolute Max. Power Diss. (W):175#
Maximum Operating Temp (øC):150õ
I(CBO) Max. (A):1.0m
@V(CBO) (V) (Test Condition):100
h(FE) Min. Current gain.:1.0k
@I(C) (A) (Test Condition):10
@V(CE) (V) (Test Condition):3.0
f(T) Min. (Hz) Transition Freq:40MÂ
@I(C) (A) (Test Condition):5.0
@V(CE) (V) (Test Condition):3.0
V(CE)sat Max. (V):2.0
@I(C) (A) (Test Condition):10
@I(B) (A) (Test Condition):40m
t(on) Max. (s) On time.:1.0uÂ
t(off) Max. (s) Off time:3.5uÂ
Semiconductor Material:Silicon
Package Style:SOT-93
Mounting Style:T
Ccb¯
Description:R1 = 3.0k; R2 = 80 ohm typ. C-E Diode.
