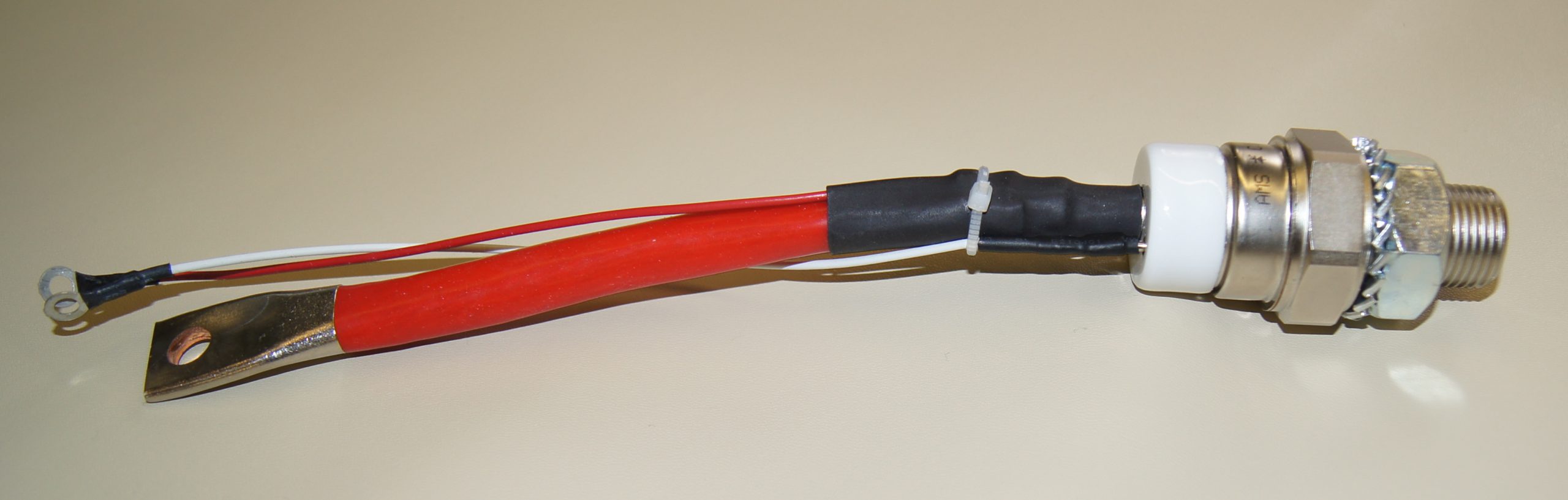

Part Number: C184N
| Internal ID | 70451
|
| Quantity in Stock: | 6
|
| Manufacturer: | AMS
|
| Description: | Silicon Controlled Rectifier: The General Electric C184 and C185 Silicon Controlled Rectifiers are designed fo
r power switching at high frequencies. These are all-diffused Pic-Pac device, em
ploying the field proven amplifying gate.
Features:
High di/dt Ratings,
High dv/dt Capability,
Excellent Surge and I2t Ratings providing Easy fusing.
Guaranteed Maximum Turn-Off time with selections available.
Rugged hermetic package with long creepage path.
SCR,POWER SWITCHING AT HIGH FR
|
| Category: |
Price Per Quantity
| Minimum Operating Temp (øC): | -40 |
| V(GT) Max.(V): | 3.0 |
| I(TSM) Max. (A): | 3.5k |
| @Temp. (øC) (Test Condition): | 125õ |
| V(DRM) Max. (V): | 800 |
| @Temp. (øC) (Test Condition): | 65# |
| @Temp. (øC) (Test Condition): | ‘ |
| Mounting Style: | T |
| Package Style: | TO-209AC |
| Military/High-Rel: | N |
| V(T) Max. (V): | 2.8 |
| I(GT) Max. (A): | 150m |
| I(T) Rated Maximum (A): | 300± |
| Maximum Operating Temp (øC): | 125õ |
| t(q) Typ. (s): | 10u¥ |
| I(D) Max. (A) Leakage Current: | 20 |
| dv/dt Min. (V/us): | 200¥ |
| @I(T) (A) (Test Condition): | 1.5k |
