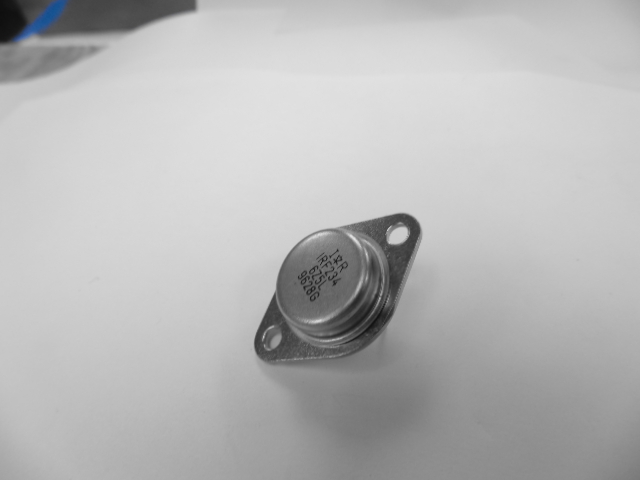

Part Number: IRF234

IRF234
Internal ID
84947
Quantity in Stock:
280
Manufacturer:
IR
Description:
8.1A and 6.5A 275V and 250V 0.45 and 0.68 Ohm N-Channel Power MOSFETs TRANS.TO-3
Category:

Price Per Quantity

280 in stock

1 - 24 $29.08
25 - 99 $28.78
100 - 499 $28.49
500 - 999 $28.35
999 + $28.20
































@V(DS) (V) (Test Condition):200
td(on) Max (s) On time delay:14n
@V(GS) (V) (Test Condition):20
@Temp (øC) (Test Condition):125
@V(DS) (V) (Test Condition):25
t(f) Max. (s) Fall time.:29n
Thermal Resistance Junc-Case:1.67
Thermal Resistance Junc-Amb.:30
V(BR)DSS (V):250
g(fs) Max; (S) Trans. conduct;:12Â
Absolute Max. Power Diss. (W):75
g(fs) Min. (S) Trans. conduct.:8.0
V(BR)GSS (V):20
r(DS)on Max. (Ohms):450mò
Minimum Operating Temp (øC):-55õ
C(iss) Max. (F):600pÂ
V(GS)th Max. (V):4
@V(GS) (V) (Test Condition):10
@Freq. (Hz) (Test Condition):1M
V(GS)th (V) (Min):2
I(D) Max. (A):8.1
@I(D) (A) (Test Condition):250u
I(DSS) Max. (A):1m
t(d)off Max. (s) Off time:47n
I(GSS) Max. (A):100n
@I(D) (A) (Test Condition):4.1
t(r) Max. (s) Rise time:35n
I(DM) Max. (A) Pulsed I(D):5.1
@I(D) (A) (Test Condition):10
@Temp (øC):100
IDM Max (@25øC Amb):32
@V(DS) (V) (Test Condition):25
