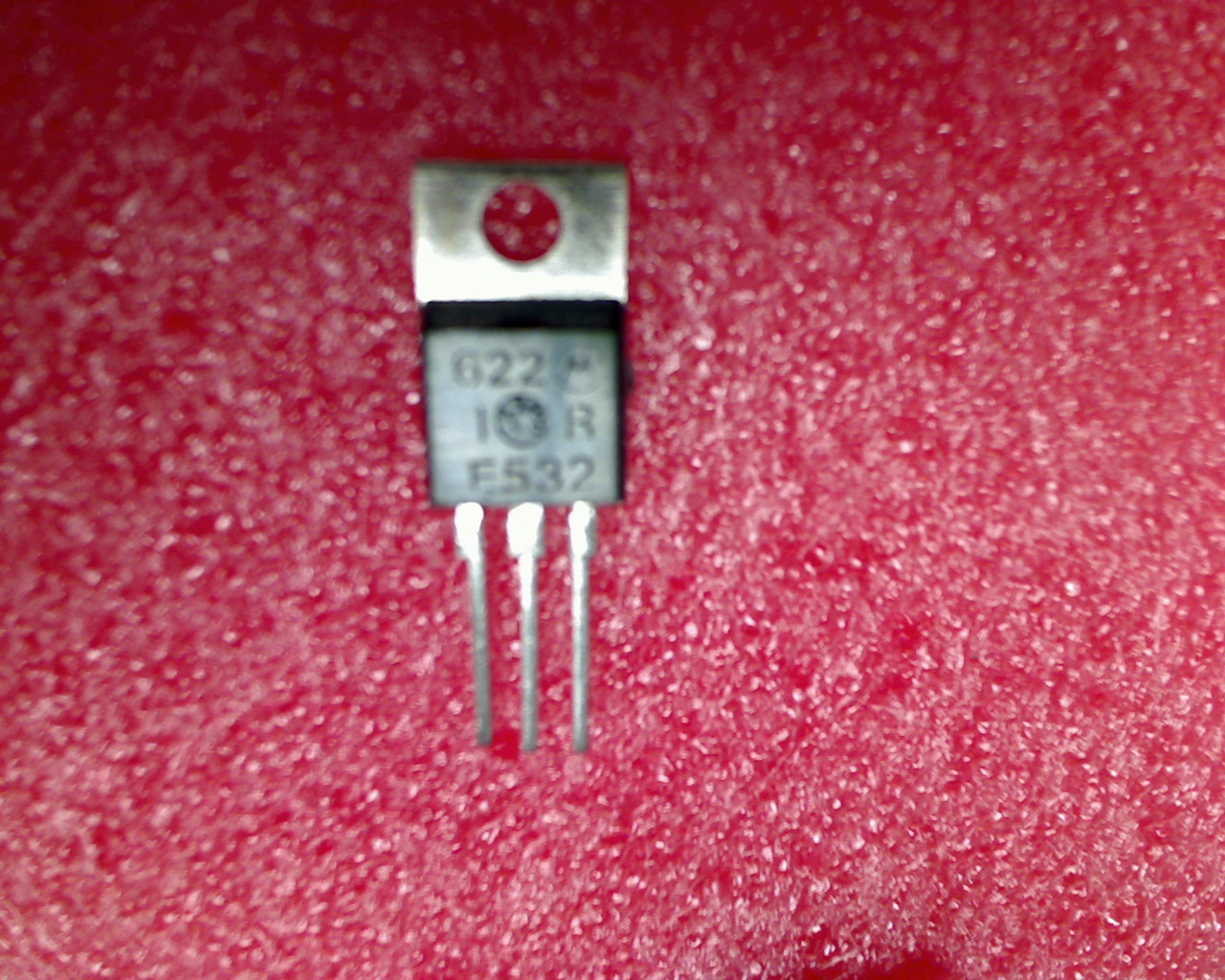

Part Number: IRF532

IRF532
Internal ID
84976
Quantity in Stock:
900
Manufacturer:
MOTOROLA
Description:
N-channel enhancement-mode power field-effect transistor. Drain-sourge voltage 100V. Continuous drain current(at Tc 25deg) 12A. TRANS.
Category:

Price Per Quantity

900 in stock

1 - 24 $2.98
25 - 99 $2.95
100 - 499 $2.92
500 - 999 $2.91
999 + $2.89























@I(D) (A) (Test Condition):8.3
@Temp (øC) (Test Condition):25
g(fs) Min. (S) Trans. conduct.:5.1
@I(D) (A) (Test Condition):8.3
@V(DS) (V) (Test Condition):25
@Temp (øC):100
I(DSS) Max. (A):250u
t(d)off Max. (s) Off time:35n
I(DM) Max. (A) Pulsed I(D):8.3
V(GS)th (V) (Min):2
@I(D) (A) (Test Condition):250u
@Freq. (Hz) (Test Condition):1M
g(fs) Max; (S) Trans. conduct;:7.6Â
@V(DS) (V) (Test Condition):100
@V(DS) (V) (Test Condition):50
V(GS)th Max. (V):4
IDM Max (@25øC Amb):48#
@V(GS) (V) (Test Condition):20
Thermal Resistance Junc-Amb.:80
@V(GS) (V) (Test Condition):10
td(on) Max (s) On time delay:15n
Thermal Resistance Junc-Case:1.9
Minimum Operating Temp (øC):-55õ
