| @V(GE) (Test Condition): | 15 |
| Maximum Operating Temp (øC): | 150 |
| td(on) Max (s) On time delay: | 70n |
| Minimum Operating Temp (øC): | -55 |
| V(BR)CES (V): | 1.2k |
| t(f) Max. (s) Fall time.: | 630n |
| Thermal Resistance Junc-Case: | .77 |
| @I(C) (A) (Test Condition): | 17 |
| Thermal Resistance Junc-Amb.: | 40 |

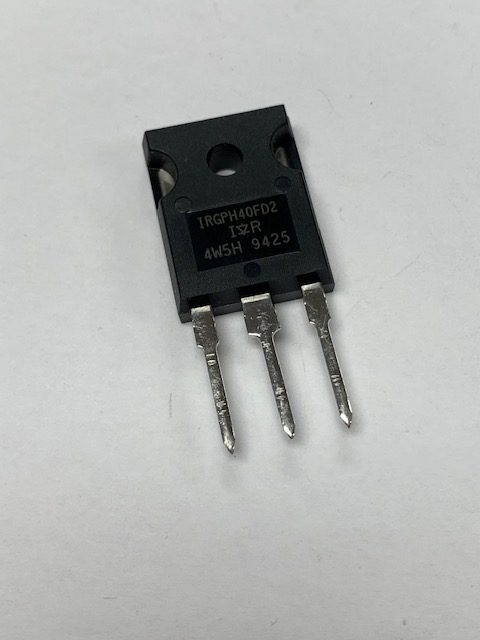

| Package Style: | TO-247AC |
| Absolute Max. Power Diss. (W): | 160# |
| @I(C) (A) (Test Condition): | 17 |
| I(CES) Max. (A): | 250u |
| g(fe) Max. (S) Trans. admitt.: | 11Â |
| V(BR)GES (V): | 20 |
| I(GES) Max. (A): | 100n |
| I(GES) Max. (A): | ° |
| I(C) Max. (A): | 29# |
| Mounting Style: | T |
| t(d)off Max. (s) Off time: | 550n |
| t(r) Max. (s) Rise time: | 58n |
| g(fe) Min. (S) Trans. admitt.: | 5.0 |
| V(GE)th Max. (V): | 5.5 |
| @V(CE) (V) (Test Condition): | 100 |
| V(CE)sat Max. (V): | 3.3 |
